Utility Station #45188 - Dual Power Cable

The D/F Utility Station is required for all D/F torch installations. Typical modern torch setups utilize a unitized cable assembly with a power pin. D/F torches take an alternative approach to the setup. The torches use a separate gas hose, water-in hose, Water Out & Power Cable, and casing/conduit. When one cable goes bad it is simply replaced instead of attaching an entire new unitized cable assembly; a huge cost saver! This is also where the D/F Utility Station comes into play. The gas hose, water-in hose, and Water Out & Power Cables are interfaced with the customer's existing lines via the Utility Station. The D/F torch leads plug into the front (see right) of the Utility Station. Into the back (see below) of the Utility Station go the customer's utilities. Read more on the D/F Utility Station product page.

For more information on proper use of the D/F Utility Station, and to see the various torch connection options, please download the Torch Connection Options one-sheet.

More Info

The tandem process is a GMAW automated process that increases the application range of traditional single-wire GMAW processes: Two electrically isolated wire electrodes are positioned in line, in the direction of travel. The first electrode, the 'Lead' (Mode A), controls the majority of the base plate penetration. The second electrode, the 'Follow' (Mode B), controls weld bead appearance and contour, edge wetting, and adding to the overall deposit rate. The spacing between the two wires is usually less than 15mm so that both welding arcs are delivering to a common weld puddle, but can be adjusted for job requirements and different applications. The process uses a true tandem configuration of dual power sources and two wire feeders to generate two separate welding arcs. The output of the two power sources are coordinated by either a robot controller for robotic applications, or by a Tandem interface for dedicated hard automated work cells. The two arcs are positioned to operate in a common weld puddle by a specially designed high amperage D/F Machine Specialties patented Tandem Water-Cooled "MIG" welding torch. Operation of the welding arcs in the close proximity of a common weld puddle is made possible by the use of high-speed dual power source output coordinating the interaction of the welding arcs. This unique operating arrangement promotes productivity, often greater than two separate wire electrodes, while providing the operating convenience of a single torch process.

The tandem process establishes a means for increasing both the travel speed and deposition rate without compromising the weld quality. The ability of the process to control heat input and bead wetting further enhances weld quality and minimizes weld repair associated with burn-through on thin components, or distortion on thick members. The process works best with a large diameter 'Lead' (Mode A) wire and a small diameter 'Follow' (Mode B) wire. The larger 'Lead' wire may represent as much as 65% of the total deposition rate, while providing greater penetration. The smaller, trail welding wire is focused on the trail edge of the weld puddle. The trail wire is typically smaller in diameter and therefore draws less current. This helps to control the shared weld puddle and aids in keeping it cool. A common compromise is to specify the 'Lead' and 'Follow' welding wires to be the same diameter to satisfy inventory constraints or because the direction of welding must be reversed somewhere on the weldment.

The Most Common Variants of the Tandem Process:

1. Pulsed/Standard mode: 'Lead' (Mode A) arc is synchronized pulsed while the 'Follow' (Mode B) arc is Constant Voltage for achieving maximum welding speed and gap bridging.
2. Standard/Pulsed mode: Best for deep penetration the 'Lead' (Mode A) arc is in Constant Voltage mode which maximizes penetration and travel speed while the 'Follow' (Mode B) arc is in pulse mode to reduce heat input and cool the weld puddle.
3. Standard/Standard mode: 'Lead' (Mode A) and 'Follow' (Mode B) arcs are both in Constant Voltage mode usually for welding with just one electrode and switching to the other when changing directions to reduce cycle time.

Benefits:

• Pulsed/Standard mode: 'Lead' (Mode A) arc is synchronized pulsed while the 'Follow' (Mode B) arc is Constant Voltage for achieving maximum welding speed and gap bridging.
• Standard/Pulsed mode: Best for deep penetration the 'Lead' (Mode A) arc is in Constant Voltage mode which maximizes penetration and travel speed while the 'Follow' (Mode B) arc is in pulse mode to reduce heat input and cool the weld puddle.
• Direction of process is independent
• Have capability to track in either direction with either wire ('Lead' or 'Follow') for maximum flexibility with creating programs and doing off-line programming.
• Allows full advantage of robots working range.
• Capable of tracking off either wire
• Lowers production costs
• Increases productivity

Advantages:

• High welding speeds
• Faster cycle times
• Reduced heat input
• Resists burn-through on thin materials
• Low spatter levels
• Good penetration on thick materials

Typical Applications:
The tandem process is typically used on cylinders, tanks, water heaters, lawn and garden equipment, gussets and stiffeners, off-road equipment, construction equipment and agricultural machinery, ASME tanks, joggle joints, and pipe and tubular components.

Power Sources:
Tandem-Wire welding made substantial advances when power sources were converted to digital technology. Now it was possible to control the welding process in a completely digital manner, which yielded considerable benefits:

• Small and compact electronics.
• Flexible system control of the welding arc
• Long term stability not affected by temperature drifts

It was vital that the two power sources communicate with each other for the synchronization of the two electric arcs. An additional requirement was that the robot could activate the two power sources as a single power source.

Wire Feeders:
Advancing two welding wire electrodes requires two wire feeder mechanisms that each advance one electrode. In the automated process it's important that the wire feeders are capable of unwinding wire from large drum coils in a manner that also straightens the wire.

In conclusion, for all applications a substantial increase in productivity can be obtained. The rule of thumb sometimes mentioned, "double-wire = double speed", appears to be correct compared with conventional single-wire welding. The welding speed, the weld quality and the process tolerances must however be balanced (evaluated for each case). It is also interesting to note that the tandem welding process has a much higher penetration capacity than single-wire welding. D/F's Tandem torch, will help reach maximum output of the welding process by increased weld speeds, increased arc stability for optimum weld quality and consistency, higher deposition, and Maximum number of hours of welding contact/current tip life, thus reducing shut downs and start ups also reducing the amount of scrap produced.

Ordering Information

Complete Barrel Only

Complete Assemblies

Manuals & Downloads

Instruction Manuals

CAD Files & Drawings

Other Documents

Utility Station #45188 - Dual Power Cable

The D/F Utility Station is required for all D/F torch installations. Typical modern torch setups utilize a unitized cable assembly with a power pin. D/F torches take an alternative approach to the setup. The torches use a separate gas hose, water-in hose, Water Out & Power Cable, and casing/conduit. When one cable goes bad it is simply replaced instead of attaching an entire new unitized cable assembly; a huge cost saver! This is also where the D/F Utility Station comes into play. The gas hose, water-in hose, and Water Out & Power Cables are interfaced with the customer's existing lines via the Utility Station. The D/F torch leads plug into the front (see right) of the Utility Station. Into the back (see below) of the Utility Station go the customer's utilities. Read more on the D/F Utility Station product page.

For more information on proper use of the D/F Utility Station, and to see the various torch connection options, please download the Torch Connection Options one-sheet.

More Info

Twin wire welding is recognized by the American Welding Society (AWS) as parallel wire that uses two wires but only a single power source and typically a single or dual contact tips. It can increase deposition rates by 20 to 30 percent versus single wire welding without significantly increasing heat input. The increase comes from the greater current density achieved by pushing a similar current over smaller, cross-sectional areas of wire.

Twin wire welding offers excellent penetration as the current density is directed axially along each wire. Wires can be aligned in the direction of travel for high travel speeds or oriented perpendicularly to the direction of travel to achieve a wider bead profile.

When twin wire welding, you must use a heavy-duty water-cooled contact assembly. A good contact assembly comprises heavy-duty CrZr (Cr-Chromium Zr-Zirconium) contact tips or a single contact tip with slots for both wires.

Ordering Information (Complete Assemblies)

Manuals & Downloads

Instruction Manuals

CAD Files & Drawings

Other Documents

Utility Station #45196

The D/F Utility Station is required for all D/F torch installations. Typical modern torch setups utilize a unitized cable assembly with a power pin. D/F torches take an alternative approach to the setup. The torches use a separate gas hose, water-in hose, Water Out & Power Cable, and casing/conduit. When one cable goes bad it is simply replaced instead of attaching an entire new unitized cable assembly; a huge cost saver! This is also where the D/F Utility Station comes into play. The gas hose, water-in hose, and Water Out & Power Cable are interfaced with the customer's existing lines via the Utility Station. The D/F torch leads plug into the front (see right) of the Utility Station. Into the back (see below) of the Utility Station go the customer's utilities. Read more on the D/F Utility Station product page.

For more information on proper use of the D/F Utility Station, and to see the various torch connection options, please download the Torch Connection Options one-sheet.

Robotic Welding Systems

Robotic welding is suitable for any welding process designed for automation in that it requires repetitive tasks on similar pieces. Robotic welding also works well when there are welds on more than one axis, or where access to the pieces is difficult. When programmed, robots perform the same welds every time on work-pieces of the same dimensions and specifications. In about 80 percent of applications, robotic welding is used with the solid wire GMAW process.

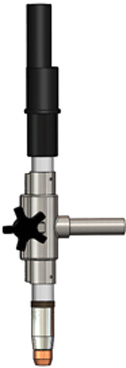

Throughout the years, D/F Machine Specialties’ MIG & TIG torches were used exclusively on the following FANUC Robotics System 100 Models - ArcMate 100, ArcMate 100i, ArcMate 100iB, and ArcMate 100iB/6S. The typical power source used with the D/F Torches on the Fanuc robotic cell was a Lincoln Powerwave 450 power supply.

QUALITY: Higher quality welds are maintained with the mechanical consistency of the robot. Consistency is provided by the precise movement of the robot arm and torch, as well as the wire feed speed and travel speed. Robotic welding creates a more consistent weld strength and better weld appearance.

PRODUCTION COSTS: Robotic Welding reduces productions costs by using fewer welding consumables and producing fewer scrapped parts.

RETURN ON INVESTMENT: The ROI for an industrial welding robot usually appears after about 6 months. Increased productivity, decreased labor, and many other benefits of automated welding factor into faster ROI times.

PRODUCTIVITY: The repeatability and speed of the robotic welding system provides increased productivity. Robotic welding can produce at a higher rate than human welding, and allow for a more productive workforce.

SAFETY: Employers find that they have fewer employee accidents and lower Workers Comp claims when they change to robotic welding.

There are two popular types of industrial welding robots, articulating robots and rectilinear robots. Robotics control the movement in each of these robot types by rotating a wrist in space. These two types are defined as follows:

1. Rectilinear robots move in line in any of three axes (X, Y, Z). In addition to linear movement of the robot along axes there is a wrist attached to the robot to allow rotational movement. This creates a robotic working zone that is box shaped.

2. Articulating robots employ arms and rotating joints. These robots move like a human arm with a rotating wrist at the end. This creates an irregularly shaped robotic working zone. Most articulated welding robots feature six axes and function as part of a robotic system or workcell.

Robotic welding systems reduce production costs and improve quality with consistency and repeatability. Consistency is provided by the precise movement of the robot arm and torch, as well as the wire feed speed and travel speed. The repeatability of the welding robotic system provides increased productivity. To create a successful robotic welding system, you need an integrator who can properly design a program that integrates the parts to be welded and the robotic cell and tooling. Robotic welding is simpler than one might think, but it requires precise measurements and an understanding of parameters of the equipment. It is important to team with an integrator with the experience and customer service demanded by your robotic needs.

Benefits of Robotic Welding:

• Reduce Production Costs - Fewer scrapped parts, reduced amount of welding consumables needed
• Improved Product Quality - More consistent weld strength, better weld appearance and consistent quality
• Increased Productivity - Robotic welding produces at a higher rate than human welding
• Cost Justification - Lower costs of robotic equipment, scarcity of highly skilled labor
• Improved Safety - Fewer employee accidents / Lower Workers Comp claims, more productive workforce

Things to consider before beginning a new robotic welding project:

• The parts to be welded
• Weld joint accessibility
• Repeatability of the parts
• Fixture requirements

Fanuc Robots
The Fanuc ArcMate 100iB/6S welding cell comprises a six axes FANUC Robotics ArcMate 100iB robot within a self-contained enclosure. The ArcMate 100iB is a six-axis, modular construction, electric servo-driven robot designed for precise, high-speed welding and cutting. Based on its simple and reliable construction, the ArcMate 100iB provides accurate and consistent path performance. The R-J3iB Controller and easy-to-use ArcTool software provide reliable performance with high productivity. Components loaded into jigs on a manually operated table are loaded outside the cell while the robot welds components within the cell.

The system is designed and manufactured by FANUC Robotics as a self contained unit which is delivered ready assembled and only requires services to be connected before operation on site.

The new ARC Mate 100iB/6S, the latest generation arc welding robot, has a compact design with improved motion range and speed. The compact yet flexible design simplifies installation, maximizes reach capability within confined areas and enables high-density installation of robots and peripherals.

Benefits

• Features highest motion speeds in class for maximum performance and productivity.
• Best in class reach versus stroke ratio.
• Compact design simplifies installation and transportation of system.
• Fastest wrist axes in class minimizes air cut time by quickly reorienting the weld torch.
• High axis speeds maximize product throughput.
• Design allows for extremely small weld cells or a high density of arc welding torches in a given area.

Features

• Slim wrist size enables the robot to enter into smaller openings in the work space.
• 951 mm reach.951 mm reach.
• 622 mm stroke.
• 6 kg payload on faceplate.
• All axes mechanical brakes.
• Absolute encoder positioning.
• TurboMove^TM advanced servo control features allow quick and smooth point-to-point motion, which increases arc on-time and throughput.
• “Plug and play” simplicity with Lincoln Electric's Power Wave or STTTM (Surface Tension Transfer) power sources.
• Compatible with all major brands of welding equipment.
• Arc welding teach pendant with application-specific hard keys offers intuitive control over the process.
• Interfaces with most types of servo-driven or indexing positioners.
• Multiple mounting positions include upright, inverted, wall or angle mount with no changes to the mechanical unit.
• Sealed bearings and drives provide protection and improve reliability.
• RV reducer drivetrain with integral bearings provides rigidity and performance in a compact package.

Options

• EMI shielding kits for TIG (GTAW), plasma (PAW) and plasma cutting (PAC) allow operation in harsh EMI (electro-magnetic interference) environments.
• Additional process welding I/O integrates multi-channel welding equipment such as 4 channel TIG and 3 channel MIG (STT).
• Various robot connection cable lengths for flexible cabinet placement and optional track rated cables.
• J1 axis stroke modification kit.
• Auxiliary axis packages for integration into welding.

Note: ARC Mate is a registered Trademark of FANUC LTD.

FANUC Ferris Wheel System - The FANUC Ferris Wheel Workcell is designed to save space and enhance operator safety.

FANUC Gantry System - A gantry robot system mounts a robot arm on an overhead track, creating a horizontal plane that the robot can travel and extending the work envelope.

FANUC Manual Turntable System - A FANUC workcell with a manual turntable is an ideal solution for applications that require loading and unloading parts while the robot is in operation.

FANUC Stationary Table System - FANUC robots offer excellent ROI in welding and handling applications. Realize incredible savings with a FANUC turnkey workcell that includes a single or dual stationary work table.

FANUC Track System - The Dual FANUC Track System allows for nearly 63 feet of travel along a servo controlled track to accommodate applications with large parts and multiple processes.

FANUC Turntable System - Order a workcell that fits your needs! Available in any size, this workcell pairs a 180 degree table with one or two FANUC robot arms for maximum productivity.

Shop Gains Productive Edge with Robotic Welding
F.R. Custom Metal Fabricating Ltd. made a sound investment in the future with the recent purchase of its first robotic welding cell. Faced with a contract to produce a large volume of pallet truck handles, the fabricating shop found it increasingly difficult to maintain the skilled workforce of welders needed to produce consistent, high quality parts at the necessary volume. By adding a two-station Lincoln Electric automated welding system with D/F Machine Specialties torches, the firm is now able to meet production and quality goals without trying to find employees willing to work overtime.

F.R., a custom fabricator founded 28 years ago by its President, Alfred Nonnewitz, traditionally has specialized in lower volume, higher quality fabrications, particularly those involving tubular components. For the last three or four years, the company has been producing pallet truck handles on a contract that calls for increasingly higher volumes, now generally between 700 and 1,000 parts per week, according to Bill Nonnewitz, the founder's son.

As with most manufacturing firms throughout North America, F.R. was finding it increasingly difficult to hire the skilled workers needed to maintain the quality and volume of its production. And with today's busy lifestyle, employees were less willing to work long overtime hours to keep up with the demand.

After meeting with representatives of The Lincoln Electric Company's Automated Systems Group (ASG), Alfred and Bill Nonnewitz concluded that the benefits of automating the handle-welding operation would be worth the investment.

The result is a complete two-station work cell that incorporates a six-axis Fanuc ARC Mate™100i robot equipped with a SYSTEM R-J3™ controller, a Lincoln Power Wave® 450 power source, and a D/F Machine Specialties 22 degree LRN water-cooled torch (D/F #40785-4).

Safety was built into the welding cell with the addition of safety zone rings (limit switches) that prevent the robot and welding torch from going to the station where the operator is working on the next setup until the area is cleared. In addition, each station has a safety mat that prevents the robot from coming to that station if the operator is standing on the mat. Further safety protection is provided by a breakaway nozzle that minimizes damage in case the torch hits any part of the workstation or the parts being welded.

All components are mild steel, with the handle and brackets being 16 gauge and the tube being 14 gauge. Welds are made with .035" diameter Lincoln SuperArc® L-56™ (AWS ER70S-6) electrode, which includes extra deoxidizers that provide cleaning action and improve weld quality. Since the handles are used to move pallet trucks that weigh up to 5000 lbs., weld integrity is critical to meeting the stresses they must withstand. All welds are fillets, but the welds that join the round handle to the square tube are especially critical. Bill Nonnewitz explains, "The welding power source is capable of making a full regulated controlled weld without spatter or burn-through. Because we only have 1/16" on a side, the welds can't extend out very much. They have to be good, and the penetration has to be consistent."

Jim Grant explains that the entire workstation is modular and can be moved with a forklift. "It's essentially a plug-and-play robot that was placed on the floor as a complete unit, pre-programmed for the parts they make. Everything is mounted on a platform that keeps the units in proper relationship to one another and allows the cell to be moved easily to another location if needed."

The Lincoln PowerWave® 450 is a sophisticated power source that gives the company significant advantages, with cost savings that are expected to more than offset a slightly higher initial investment. First is the unit's capability for Pulsed MIG welding, an advanced welding mode that combines the best qualities of all other metal transfer modes without their disadvantages. Its lower heat input prevents burn-through on thin metals. Spatter and fume are reduced as well, which improves the working environment and reduces costs. Since only one wire size is required, wire and gas costs are also lower, and the process delivers higher deposition rates than other processes, so productivity is greater. In addition, the power source can be updated easily with new software, an important advantage that protects the company's investment.

The Fanuc ARC Mate™100i robot is designed with integral utilities to improve reliability and setup time. The wire feed motor cable, gas line and air line are all inside the robot arm. Its high motion speeds help improve productivity, and advanced servo-control features allow faster and smoother point-to-point motion.

The FANUC Robotics System R-J3 controller is completely integrated with the robot itself, which allows flexible work cell layout and easy installation. It utilizes the most advanced software with features that include welding restart, scratch start, and on-the-fly weld adjustment. Mirror image utility allows the programmer to shift an existing program and also to invert it, which is extremely useful with F.R. Custom Metal's two-station mirror-image cell. The program also allows starting and stopping the programmed welding sequence from the Teach Pendant, which features commands in English for ease of use.

While no comparative figures were kept, the improvements in product quality and productivity have been significant since the company added the robotic cell, and the labor shortages it experienced earlier have been minimized. Bill Nonnewitz says that, since installing the robotic system a few months ago, the company has already seen significant savings, both in reduced overtime costs and in rework and scrap losses.
